Tips for Measuring Your
Windows & Doors
Simple guidance to help you get started with confidence
MEASURING WINDOWS

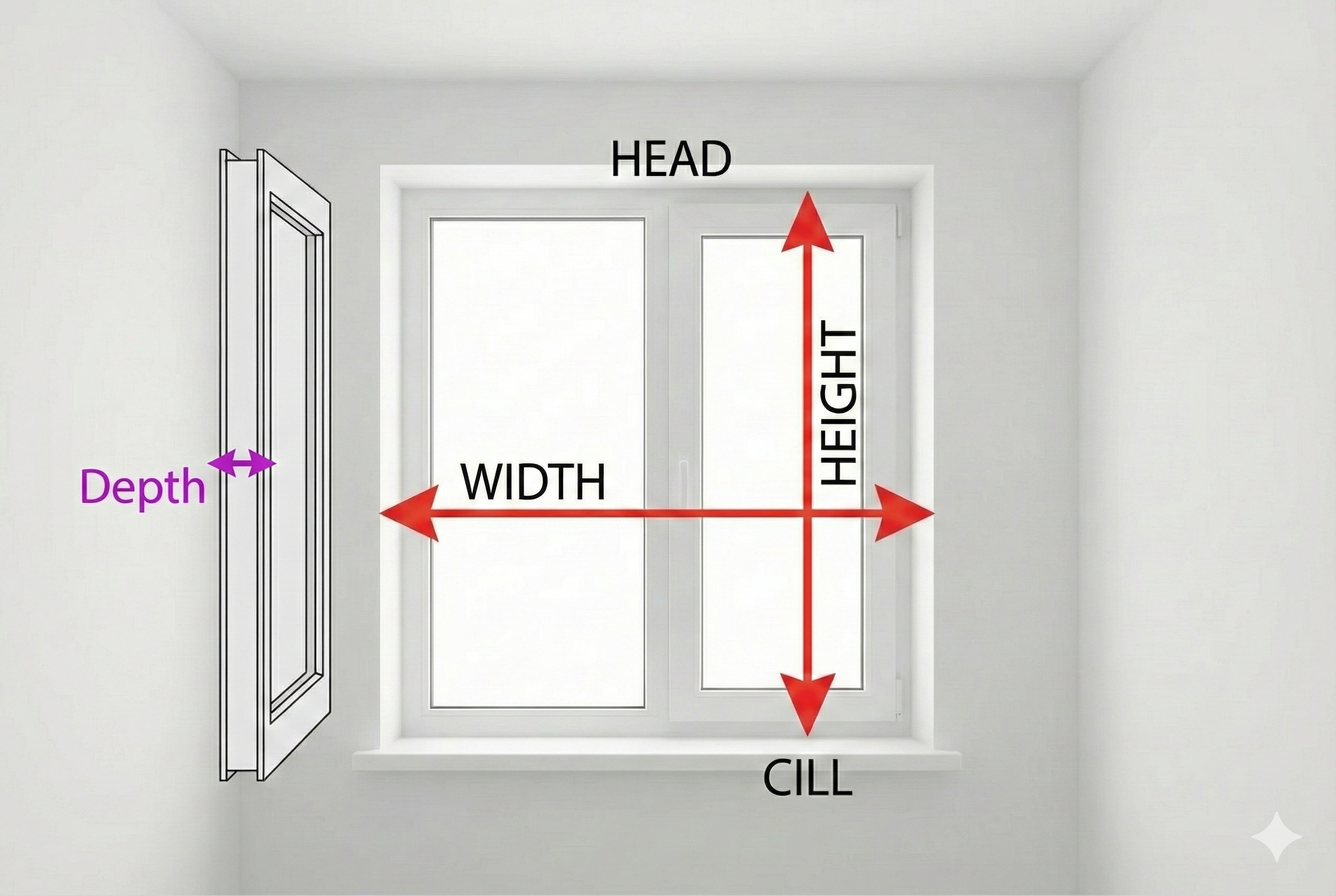

Standard Windows
- Sketch your window as viewed from inside the room.
- Take all measurements from inside, recording them in centimeters or inches.
- Width: Measure from reveal to reveal (left to right).
- Height: Measure from the window sill (cill) to the head (top of opening).
- Record the largest measurement to ensure proper fit.
- Depth: Measure the window depth (frame thickness) from the front face of the window frame to the back edge, using the visible side of the window opening.
📌 Tip: Do not include trims or architraves in your measurements.

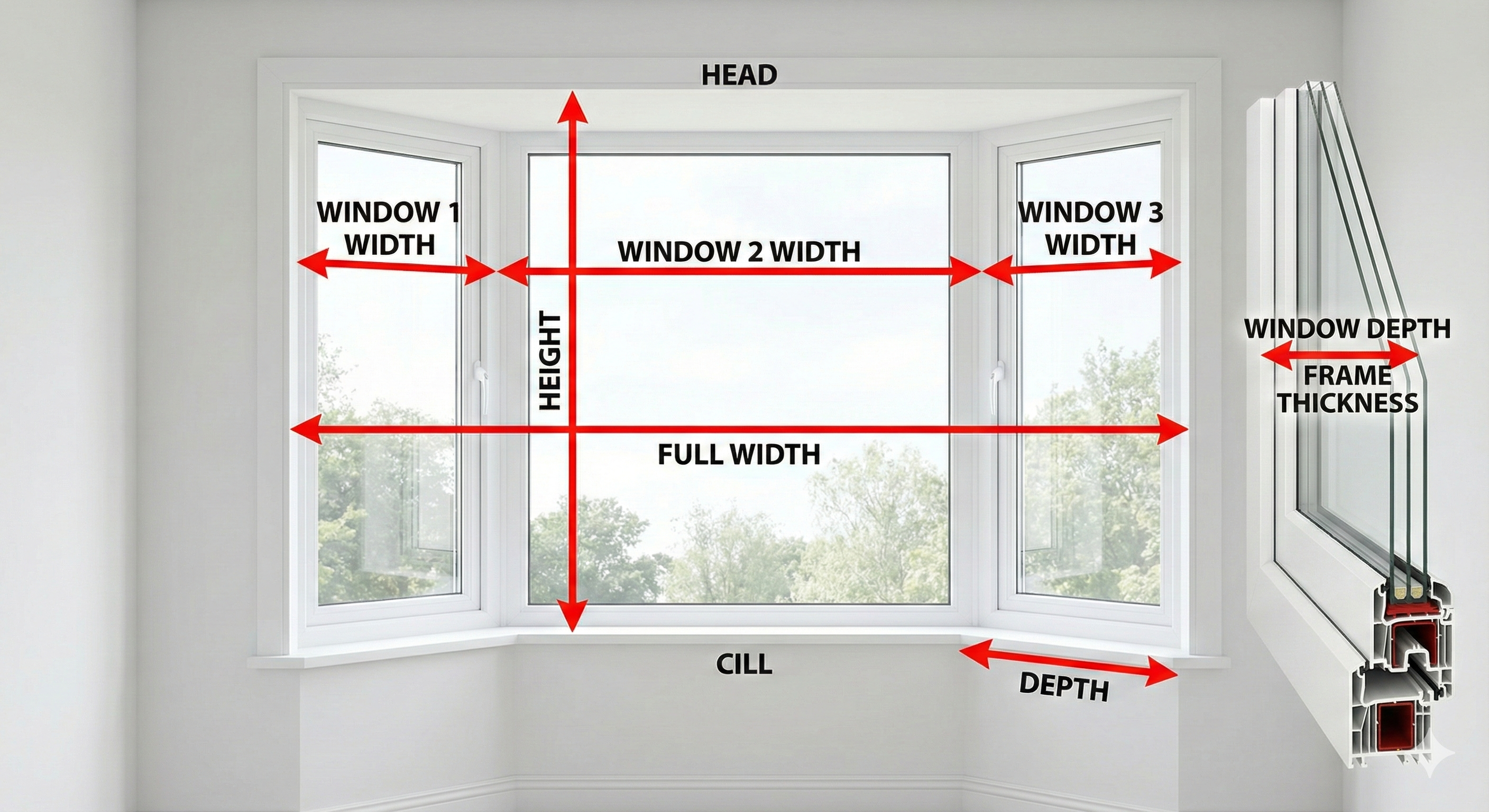

MEASURING BAY WINDOWS
Bay windows require multiple measurements due to their angles.
- Draw a simple sketch of your bay window from the inside.
- Measure each individual window width as marked in your sketch.
- Measure the full width across the bay.
- Measure the depth from the window edge to the furthest point of the bay..
- Measure height from the cill to the head.
📌 Our design team will review bay window measurements carefully to ensure structural and visual accuracy.
MEASURING FRONT & BACK DOORS
- Sketch your door as viewed from inside the room.
- Measure the opening width from reveal to reveal.
- Measure height from the floor to the head of the opening.
- If your door includes side panels, measure each panel separately.
- Note door type (single, double, pivot, or with sidelights).
📌 If unsure, submit approximate measurements—final sizing is always confirmed before order.
MEASURING PATIO, FRENCH & BI-FOLD DOORS
- Sketch the door system from inside the room.
- Measure the total width of the opening.
- Measure height from the finished floor to the head.
- Indicate the number of panels and opening direction if known.
- Note whether the door opens inward or outward.
📌 Large openings are reviewed carefully to ensure smooth operation and structural safety.
PREPARING FOR YOUR DESIGN CONSULTATION
What to expect
Site Review
We assess your requirements and project conditions to ensure the best solution.
Clear Communication
We walk you through product options, finishes, and functionality.
Clean & Professional Process
Our team follows safe, respectful, and professional site practices.
Ventilation & Access
Please ensure clear access and basic ventilation during visits.
GET YOUR NO-OBLIGATION QUOTE
Let’s bring your vision to life
Submit your measurements and our team will guide you through the next steps—design options, materials, finishes, and timelines.
